Your location:Home > Product > Spiral welded pipe unit

SSAW630 Spiral welded pipe unit

◎ Unit annual output:10,000 ~ 20,000 tons/year
◎ Unit area:32×16m

Spiral welding pipe unit is to open the steel coil through the unit equipment, levelling, and then at a certain Angle into the forming machine, the use of three-roll forming principle, supplemented by a certain Angle, to form a continuous round tube, and then the conti...

Free design drawings, can undertake turnkey projects

+86-0316-7210054

Online consultation

SSAW630 Spiral welded pipe unit introduction

Unit annual output: 10,000 ~ 20,000 tons/year
Unit area :32×16m

The unit is used to produce spiral welded pipe with diameter φ219 ~ φ630㎜ from strip coil with thickness δ=3.5-10mm, width B=400-850mm and steel grade Q345B by opening, leveling, trimming, forming, welding and other processes. The electronic control system adopts Omron PLC automatic control system, digital display system, continental DC speed control system and so on.

Free design drawings, can undertake turnkey projects

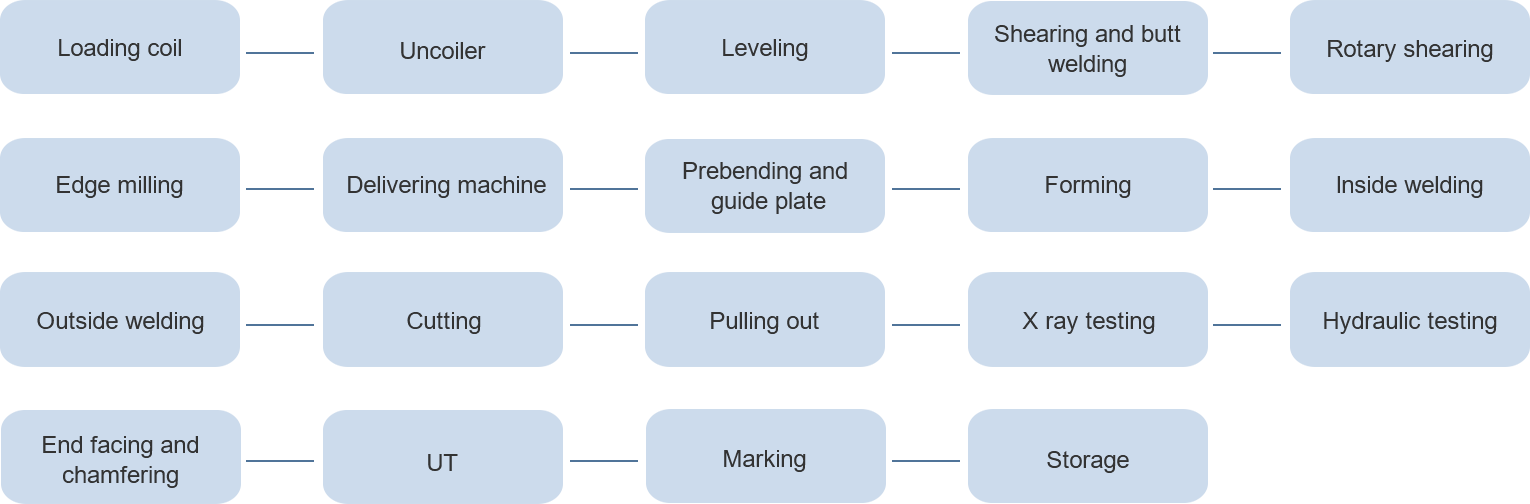

SSAW630 Spiral welded pipe unit process flow

SSAW630 Spiral welded pipe unit technical parameter

Item#	Model	Product spec. mm(in)	Plate width. mm(in)	Thickness mm(in)	Coil weight t(ton)	Installed capacity Kw(hp)	Floor area m²(ft²)
1	LH-400	φ219-φ426	400-750	3-8	10	180	18 X180
1	LH-400	φ85/8”-φ16”	15.75”-29.5”	0.118”-0.315”	10	241	59X590
2	LH-500	φ219-φ529	400-800	3-10	15	200	18X180
2	LH-500	φ85/8”-φ2012/15”	15.8”-31.5”	0.118”-0.394”	15	268	59X590
3	LH-600	φ219-φ630	450-1050	3-12.7	20	240	21X180
3	LH-600	φ85/8”-φ2412/15”	17.7”-41.3”	0.118”-0.5”	20	322	69X590
4	LH-700	φ219-φ720	500-1250	3-12.7	20	260	21X180
4	LH-700	φ85/8”-φ28”	19.7”-49.2”	0.118”-0.5”	20	349	69X590
5	LH-800	φ219-φ820	500-1300	3-12.7	25	380	24X180
5	LH-800	φ85/8”-φ32”	19.7”-51.2”	0.118”-0.5”	25	510	79X590
6	LH-1000	φ219-φ1020	500-1300	3-14	25	390	24X180
6	LH-1000	φ85/8”-φ40”	19.7”-51.2”	0.118”-0.551”	25	523	79X590
7	LH-1400	φ325-φ1420	500-1560	4-16	30	400	26X180
7	LH-1400	φ103/4”-φ56”	19.7”-61.4”	0.157”-0.63”	30	536	85X590
8	LH-1600	φ426-φ1620	500-1560	6-20	30	510	30X180
8	LH-1600	φ16”-φ64”	19.7”-61.4”	0.236”-0.787”	30	684	98X590
9	LH-1800	φ508-φ1820	1100-1600	8-20	30	510	30X180
9	LH-1800	φ20”-φ72”	43”-63”	0.315”-0.787”	30	684	98X590
10	LH-2000	φ508-φ2020	1200-2000	8-25.4	40	530	30X180
10	LH-2000	φ20”-φ80”	47.2”-78.7”	0.315”-1”	40	711	98X590
11	LH-2400	φ508-φ2400	1200-2000	8-25.4	40	530	30X180
11	LH-2400	φ20”-φ95”	47.2”-78.7”	0.315”-1”	40	711	98X590
12	LH-3000	φ508-φ3000	1200-2000	8-25.4	40	530	30X180
12	LH-3000	φ20”-φ118”	47.2”-78.7”	0.315”-1”	40	711	98X590

ERW89 Spiral welded pipe unit machine diagram


ERW89 Spiral welded pipe unit equipment composition

Item#	Name	Item#	Name
1	Uncoiler	2	Five roller leveler
3	Electric vertical roll	4	Shear butt welder
5	Disk shear	6	Scrap edge winder
7	Hand vertical roll	8	Delivery machine
9	Prebending device	10	Guide plate
11	Front axle	12	Forming machine
13	Internal welding	14	Outside welding
15	Rear axle	16	Pipe cutter
17	Built-in parts	18	Host area electrical system
19	Hydraulic system in main engine area
